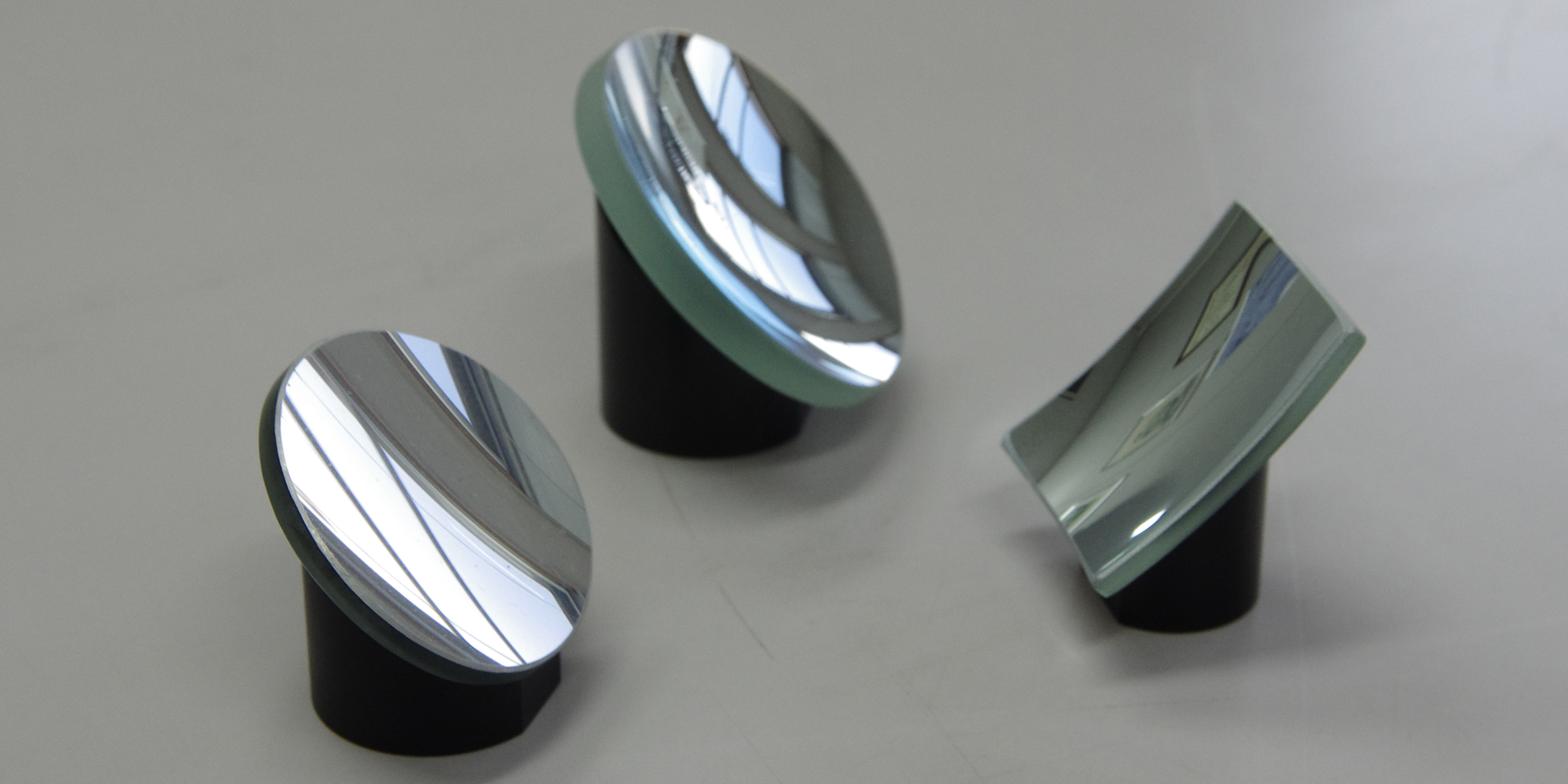

OFF-AXIS ELLIPTICAL/PARABOLIC MIRROR
This is a shaft removal mirror with an aluminum holder. We can manufacture it to your specified dimensions and shape.
Application example
It depends on the customer's intended use.
OFF-AXIS ELLIPTICAL MIRROR
Standard products
| A | B | d |
|---|---|---|
| 32.5 | 115.5 | 30φ |
| 39.5 | 212.5 | 40φ |
| 50 | 100 | 38×32 |
| 100 | 200 | 76×48 |
OFF-AXIS PARABOLIC MIRROR
Standard products
| F | D | d |
|---|---|---|
| 20 | 14φ | 20φ |
| 50 | 26φ | 40φ |
